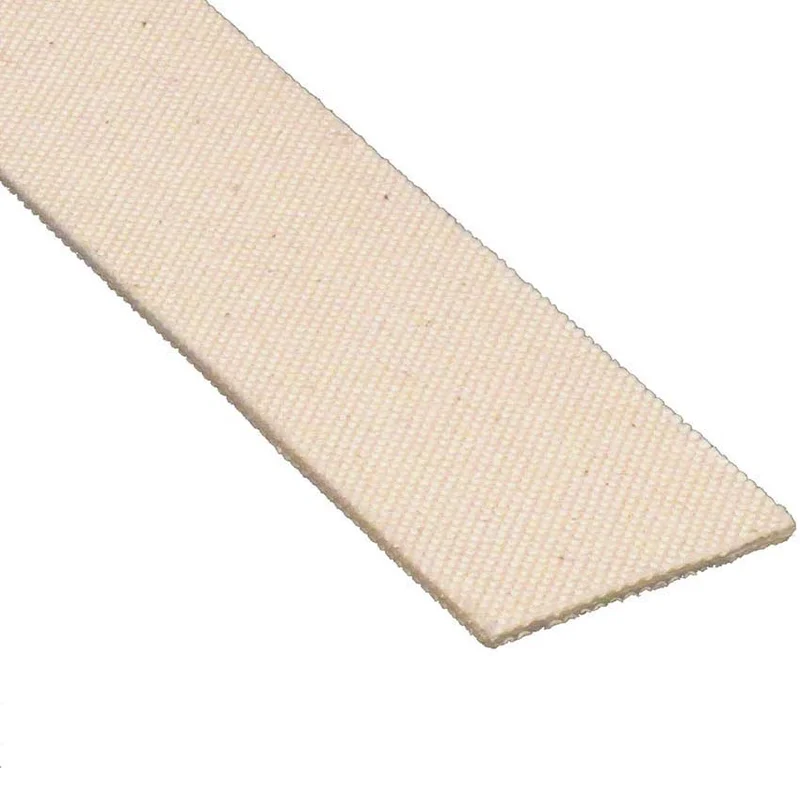

Belt for Acme 88-4 Dough Sheeter

Description

Technical Data
Color: Natural
Compound: PVC
Plies: 2
Fabric/Carcass: Polyester/ Cotton
Cover Surface: Bare Fabric
Hardness: N/A
Bottom Surface: Bare Fabric
Coefficient/Friction: 0.20 on Steel
Working Strength 46 lbs. @ 1% Elongation
Overall Gauge: .071″
Weight per Sq Ft: 0.37
Minimum Pulley: Normal-180° 1.75″ Back Flex 1.75″ Temp Range °F: 14 to 176
Food Approved: Yes
Anti-Static: No
Recommended Splice: Split Finger
Clipper Lace: #36SP
Alligator Lace: #1A
Maximum Width: 78.7″

Limited oil and grease resistance.
The cotton fabric will absorb moisture.

• Belt requires only half the dusting flour
  that all cotton belts need on dough conveyors
• Belt has interchangeable surfaces

  Acme 8 Chart

Conveyor Belt 20″ X 105″ Canvas (8)

Conveyor Belt 20″ X 129″ Canvas (8-4)

Conveyor Belt 20″ X 177″ Canvas (8-6)

Conveyor Belt 20″ X 249″ Canvas (8-9)

Conveyor Belt 20″ X 249″ Canvas (8-12)

Acme 88 Chart

Conveyor Belt 24″ X 105″ Canvas (88)

Conveyor Belt 24″ X 129″ Canvas (88-4)

Conveyor Belt 24″ X 177″ Canvas (88-6)

Conveyor Belt 24″ X 249″ Canvas (88-9)

Conveyor Belt 24″ X 249″ Canvas (88-12)
